Product Description
Bluetooth model
new product for the FORD/SAAB V4 and FORD V6.
The wireless programmable 123\TUNE+-4-R-V-FORD-V4 is designed for the Ford V4 engines in the Ford 12M, 15M, 17M, Taunus, Granada, Consul and Capri.
123ignition is proud to announce the first fully programmable wireless Bluetooth 4.0 ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.
Main features: REV-counter, Antitheft system by a PIN code, Bluetooth 4.0, Real time tuning, Vacuum advance, Vacuum retard, Soft REV-limiter, etc.
123ignition is proud to announce the first fully programmable wireless Bluetooth 4.0 ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.
Main features: REV-counter, Antitheft system by a PIN code, Bluetooth 4.0, Real time tuning, Vacuum advance, Vacuum retard, Soft REV-limiter, etc.
| SPECIFICATIONS | |
|---|---|
| cylinders: | 4 |
| direction: | CW/CCW |
| voltage: | 4,0-15,0 Volts |
| range: | 500 - 8000 rpm |
| temperature: | -30 to 100 Celsius |
| coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
| dwell: | constant current, fully autom. |
| time-out: | after 1 second current is switched off |
| spark-bal.: | better than 0,5 degr. crankshaft |
| vacuum: | vacuum advance or vacuum retard, max. 20 degrees crankshaft |
| max.advance: | 45 degr. crankshaft |
| curves: | one programmable advance curves |
| Programmable: | By iOS or Android app via Bluetooth 4.0 |
| Rev limiter: | Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off |

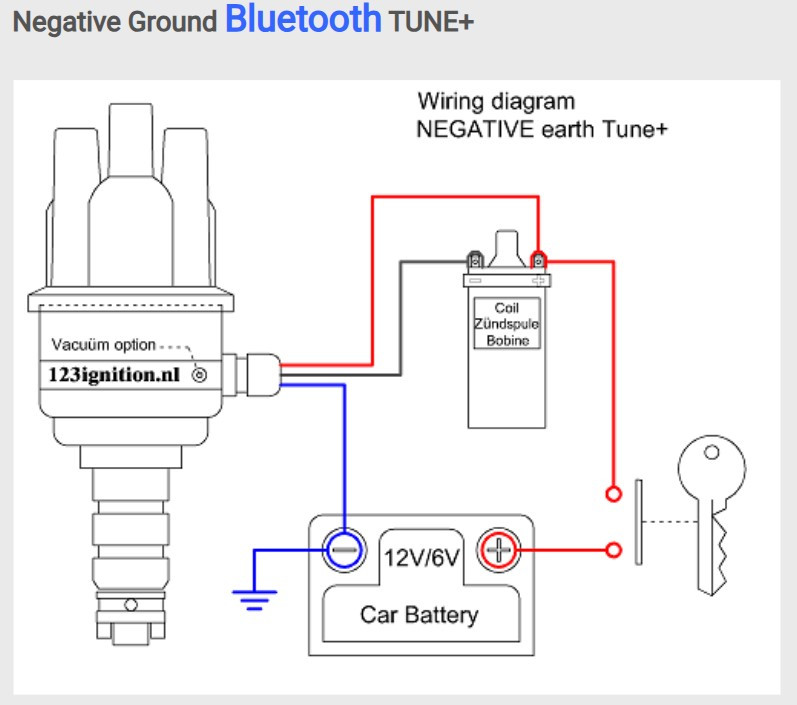

| wiring: | red = +6V or +12V, black = '-' coil, blue = ground |
| App for IOS: | 123\Tune version 1.5.2 (link to App Store opens in new window) requires iPhone/IPad/iPod 4+ and upp |
| App for Android: | 123\Tune+ version 1.5.0 (link to Google Play Store opens in new window) requires Android 4.4 and up and a device with bluetooth 4 |
Product Videos
Custom Field
Product Reviews
1 Review Hide Reviews Show Reviews
-
1970 Saab Sonett III application
I installed this on my 1970 Saab Sonett III with the Ford V4 fitted with a Weber 34 ICH. It was easy to install and fixed my overheating issue. Huge upgrade, made my Sonett a daily driver again.
