Porsche

3.0 Gear L/H Pitch

The Gear pictured on the left is used on 3.0 motors using a 123ignition. Fits 10mm shaft OD. Check which gear you have before ordering your distributor.

Adapter Bushing to fit Original Porsche Gear to 123ignition

Some later Porsche 911have a L/H pitch gear for the 3.0 and 3.2 motors. This adapter will allow you to put your original gear on a 123ignition

Porsche Bluetooth 911, 930 3.0 and 3.3 SC for HKZ 6-pin only - Bluetooth Programmable

 This is a dedicated 123ignition for 911 3.0 SC and 930 3.3 it has special wiring. It will only work with the Hkz 6pin CDI         DESCRIPTION The wireless programmable 123\TUNE+-6-R-V-POR911-3...

Porsche 3.0 or 3.3 SC 911 or 930 up to 89 Bluetooth no HKZ

If you have a broken 6 pin HKZ and want to eliminate it. This is what you need. It is for 3.0 and 3.3 SC Porsche 911's and 930's with the left hand gear. This 3.0 will work without the Hkz 3pin or with the Hkz 3 pin. It has the 3.0 L/H pitch Gear as...

Porsche 911 BT TUNE+ 2.4, 2.7, 3.3 (1972 and up) Works with or w/o 3 pin HKZ (not 6 pin) Bluetooth Programmable

123\TUNE+ 6-R-V-POR911-BIG for Porsche > 911 6 cylinder 2,4 - 2,7 - 3,3 L   If you have the gear pictured on the left and you are not using the 6pin Hkz then you need to select the L/H gear option. There...

Porsche 911 SWITCHED 2.4, 2.7, 3.3 (1972 and up) Works with or w/o 3 pin HKZ Pre-programmed

Porsche-911-BIG-6-R-V Switched   DESCRIPTION The 123\PORSCHE-911-BIG-6-R-V is designed for Porsche 911 2,4L – 2,7L and 3,3L 6 cylinder engines. Suitable for engines without HKZ (CDI) unit or first generation HKZ unit ( 3...

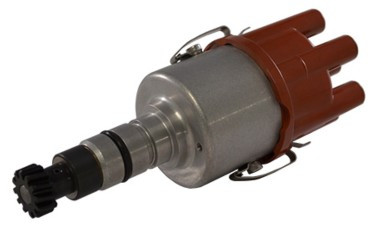

Porsche 911 BT TUNE+ 2.0, 2.2 (1965-1977) Works with or w/o 3 Pin HKZ (not 6 pin) Bluetooth Programmable

  Here is a contributed curve for the 2.0, 2.2   DESCRIPTION The wireless programmable 123\TUNE+-6-R-V-POR911-SMALL is designed for Porsche 911 2,0L and 2,2L 6 cylinder engines. Suitable for engines without HKZ (CDI) unit...

Porsche 911 SWITCHED 2.0, 2.2 (1965-1977) Works with 3 pin HZK (not 6 pin) Pre-programmed

 123\PORSCHE-911-SMALL-6-R-V for 911 6 cylinder 2,0 - 2,2 L   Wiring the HKZ 3 pin to 123ignition Terminal "A" to Pos side of coil. Neg side of coil to ground. Red from 123 to 12v terminal "B" of HKZ Black from 123 to Terminal "C"...

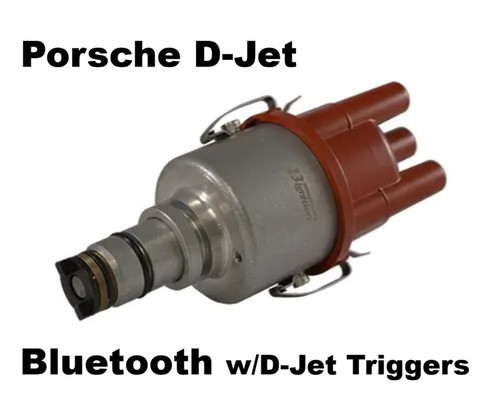

Porsche/VW BT TUNE+ 4 cyl with/D-Jet. Includes spacer. Bluetooth Programmable

TUNE+ 4-R-V-IE POR w/spacer for proper fit DESCRIPTION The wireless programmable 123\TUNE+ 4-R-V-IE Porsche is designed for VW and Porsche and Volvo 4 cylinder engines with D-jetronic injection system...

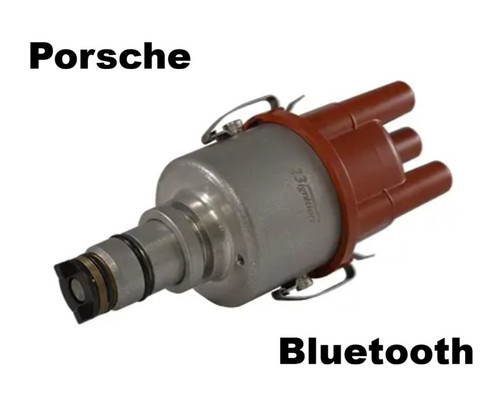

Porsche/VW BT TUNE+ 4 cyl, naturally aspirated and 1.8 L-Jet. Includes spacer. Bluetooth Programmable

The wireless programmable 123\TUNE+4-R-V-P is designed for Porsche 912 / 914 / 356 and VW 1,2,3,4 Comes with appropriate spacer for a proper fit  For Bosch D-Jetronic fuel Injection engines choose the non programmable:...

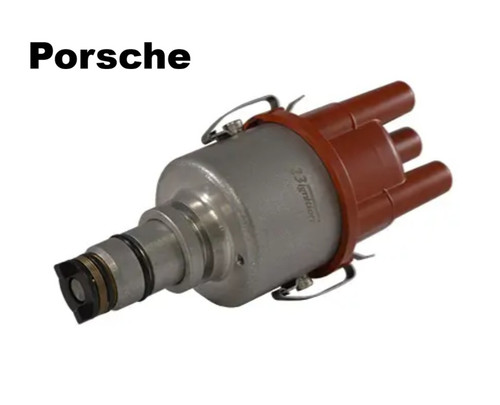

Porsche 912 / 914 / 356 / VW 411E / 412E / 1600E 123ignition Distributor Switched W/O Vacuum Includes Spacer

      Porsche 4-R No Vacuum DESCRIPTION The 123\PORSCHE-4-R is designed for Porsche 912 / 914 / 356 without vacuum The unit offers a maximum total of 16 advance-curves to be selected by the end-user.Please take...

Porsche 912 / 914 / 356 / VW 411E / 412E / 1600E and 1.8 L-Jet 123ignition Distributor Switched with vacuum Includes Spacer

    DESCRIPTION The 123\PORSCHE-4-R-V is designed for Porsche 912 / 914 / 356 The unit offers a maximum total of 16 advance-curves to be selected by the end-user.Please take a look in the table below for...

Porsche with D-JET 912 / 914 / 356 / VW 411E / 412E / 1600E Type 3&4 123ignition Distributor (Switched w/ Bosch D-Jetronic) Includes Spacer

Porsche 4-R-V-IE for D-Jetronic The 123\PORSCHE-4-R-V-IE is designed for Porsche 912 / 914 / 356  with Bosch D-Jetronic fuel injection supportThe unit offers a maximum total of 16 advance-curves to be selected by the end-user.Please take a...
