    123ignition

    Was: $525.00
    Now: $475.00
    (No reviews yet) Write a Review
    SKU:
    Refurbished B18 B20 R-V-IE
    Width:
    3.00 (in)
    Height:
    8.00 (in)
    Depth:
    3.00 (in)
    Adding to cart… category.add_cart_announcement

    Product Description

    Volvo-B18-B20-4-R-V-IE

    Volvo


    Improve the performance of your classic car with this highly reliable electronic ignition distributor.

    The 123VOLVO-B18-B20-4-R-V-IE is a unit that fits the B18 and B20 4-cylinder Volvo D-Jetronic injection engines. It fits cars, trucks and boats (VOLVO PENTA)

    This unit offers Bosch D-Jetronic fuel injection support!

    Brand

    Volvo
    Cylinders

    4
    Operating voltage

    4-15V
    D-Jetronic injection output

    Yes
    Wires

    Black: coil '-'

     ,

    Red: ignition key (battery 6V / 12V)

     ,

    White & yellow: D-Jetronic signals
    Model

    Switch
    Rotation direction

    CW & CCW
    Vacuum

    Yes
    RPM range

    500-10.000 RPM
    IE (D-jetronic support)

    Yes
    Environmental temperature

    -30 – 100 °C
    Cap type

    Straight
    Dwell

    Constant current: fully automatic adaptive dwell
    Coil charging time-out

    After 1 second, coil current is turned off
    Spark balancing

    <0.5 degrees
    Maximum advance

    40 degrees crankshaft

     Installation Manual

    The 123\VOLVO-B18-B20-4-R-V-IE is a unit that fits the B18 and B20 4-cylinder Volvo carburetor and injection engines. It fits cars, trucks and boats (VOLVO PENTA)

    This unit offers Bosch D-Jetronic fuel injection support

    It has advance-curves for the full range engines from B18A to B20F as well B18 and B20 based Volvo Penta engines.

    The unit also offers optimised LPG / Ethanol-curves for these engines.The unit offers a maximum total of 16 advance-curves to be selected by the end-user.

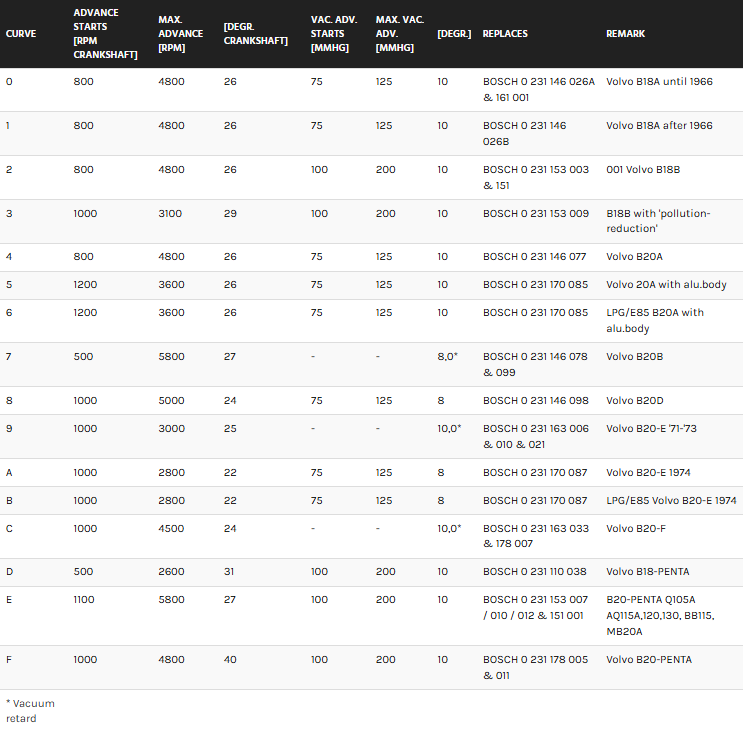

    Please take a look in the curve table for available advance curves.

    Volvo-B18-B20 – 4 – R – V – IE = Volvo-B18-B20 stands for the 123ignition type
    Volvo-B18-B20 – 4 – R – V – IE = 4 stands for the number of cylinders
    Volvo-B18-B20 – 4 – R – V – IE = R stands for straight distributor cap
    Volvo-B18-B20 – 4 – R – V – IE = V stands for vacuum advance
    Volvo-B18-B20 – 4 – R – V – IE = IE stands for Bosch D-Jetronic fuel injection support
