Product Description

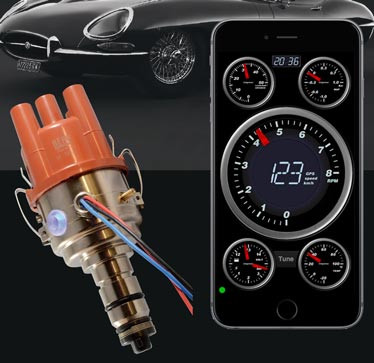

The wireless programmable 123\TUNE+4-R-V-P is designed for Porsche 912 / 914 / 356 and VW 1,2,3,4
Comes with appropriate spacer for a proper fit
For Bosch D-Jetronic fuel Injection engines choose the non programmable: 123\PORSCHE-4-R-V-IE
123ignition is proud to announce the first fully programmable wireless Bluetooth 4.0 ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.
Main features: REV-counter, Antitheft system by a PIN code, Bluetooth 4.0, Real time tuning, Vacuum advance, Vacuum retard, Soft REV-limiter, etc.
| SPECIFICATIONS | |
|---|---|
| cylinders: | 4 |
| direction: | CW/CCW |
| voltage: | 4,0-15,0 Volts |
| range: | 500 - 8000 rpm |
| temperature: | -30 to 100 Celsius |
| coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
| dwell: | constant current, fully autom. |
| time-out: | after 1 second current is switched off |
| spark-bal.: | better than 0,5 degr. crankshaft |
| vacuum: | vacuum advance or vacuum retard, max. 20 degrees crankshaft |
| max.advance: | 45 degr. crankshaft |
| curves: | one programmable advance curves |
| Programmable: | By iOS or Android app via Bluetooth 4.0 |
| Rev limiter: | Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off |
| wiring: | red = +6V or +12V, black = '-' coil, blue = ground |
| App for IOS: | 123\Tune version 1.5.2 (link to App Store opens in new window) requires iPhone/IPad/iPod 4+ and upp |
| App for Android: | 123\Tune+ version 1.5.0 (link to Google Play Store opens in new window) requires Android 4.4 and up and a device with bluetooth 4 |
