Product Description

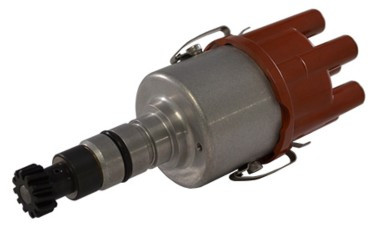

TUNE 6-R-V-POR 911-SMALL PC Programmable
Improve the performance of your classic car with this highly reliable electronic ignition distributor with USB.

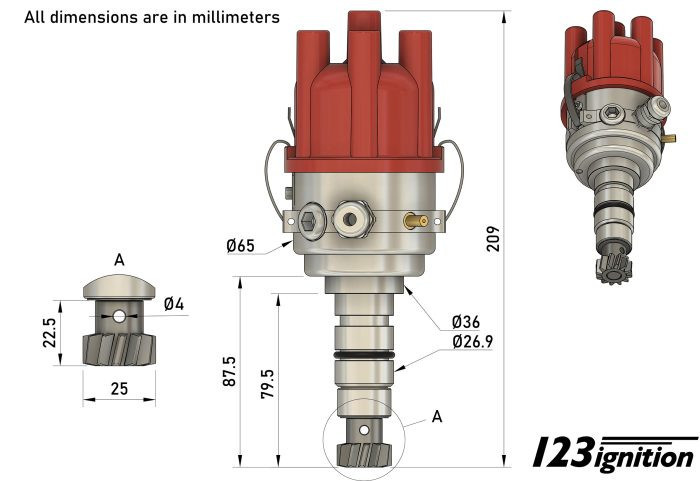

The USB programmable 123TUNE-6-R-V-POR911-SMALL is designed for Porsche 911 2,0L and 2,2L 6 cylinder engines.
Compatible with engines using a 3-pin HKZ (CDI) module.
Also suitable for direct control using a suitable ignition coil.
This model is not compatible with 6-pin HKZ (CDI) modules.
| Cylinders |
6 |
|---|---|
| Model |
Tune |
| Operating voltage |
4-15V |

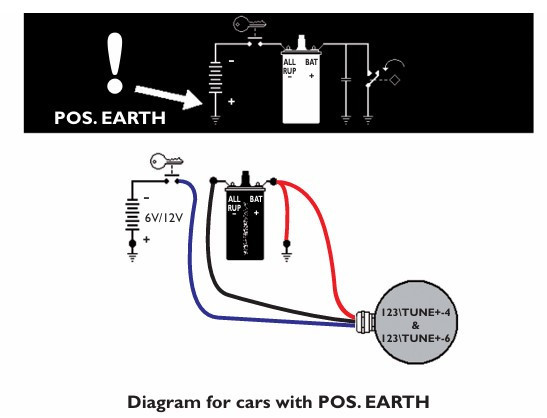

| Positive earth supported |
Yes |
| Wires |

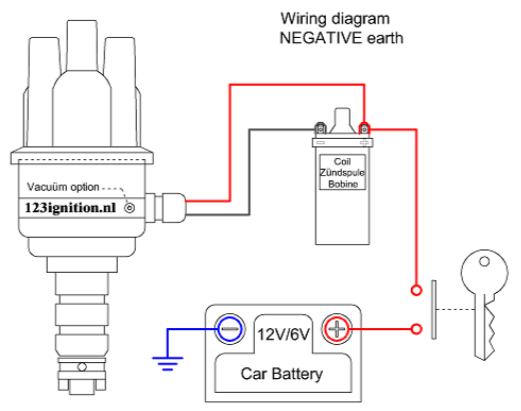

Black: coil '-', Blue: battery negative, Red: ignition key (battery 6V/12v), Yellow: curve selector |
| Vacuum |
Yes |
| Rotation direction |
CW & CCW |
| IE (D-jetronic support) |
No |
| RPM range |
500-10.000 RPM |
| Brand |
Porsche |
| Environmental temperature |
-30 – 100 °C |
| Cap type |
Straight |
| Dwell |
Constant current: fully automatic adaptive dwell |
| Coil charging time-out |
After 1 second, coil current is turned off |
| Spark balancing |
<0.5 degrees |
| Maximum advance |
40 degrees crankshaft |
The USB programmable 123\TUNE-6-R-V-POR911-SMALL is designed for Porsche 911 2,0L and 2,2L 6 cylinder engines.
Compatible with engines using a 3-pin HKZ (CDI) module.
Also suitable for direct control using a suitable ignition coil.
This model is not compatible with 6-pin HKZ (CDI) modules.
Warning: Don’t use the original HKZ (CDI) coil direct on the 123ignition.
If you want to tune your engine, or you have an engine for which there is no standard distributor available….. And you are a Windows PC user, the 123\TUNE is the answer! By connecting it to a computer, you can easily adapt the 123\TUNE to fulfill even the most demanding requirements. The unit offers two sets of curves that can be selected by placing 12 Volt on a wire from the 123\TUNE. Handy, if you’re driving on two different fuels, like regular fuel with LPG or with Ethanol.
Tune – 6 – R – V – Por911Small = Tune stands for connection with USB
Tune – 6 – R – V – Por911Small = 6 stands for the numbers of cylinders
Tune – 6 – R – V – Por911Small = R stands for straight distributor cap
Tune – 6 – R – V – Por911Small = V stands for vacuum advance
Tune – 6 – R – V – Por911Small = Por911Small stands for the 123ignition type
