    • Porsche BLUETOOTH 911 2.4, 2.7 modified to fit 3.0 SC,3.3, 930 up to 89. No HKZ, has SC Gear
  • 2.4, 2.7 Modified to work with 3.0 SC motor
Works with or w/o 3 pin HZK (Does not work with 6 pin)

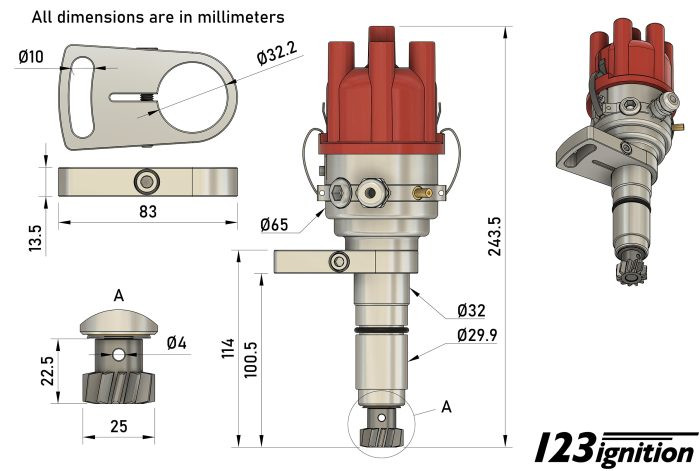

  • Dimensions
  • Wiring
  • Porsche BLUETOOTH 911 2.4, 2.7 modified to fit 3.0 SC,3.3, 930 up to 89.  No HKZ, has SC Gear
  • Porsche BLUETOOTH 911 2.4, 2.7 modified to fit 3.0 SC,3.3, 930 up to 89.  No HKZ, has SC Gear
  • 2.4, 2.7 Modified to work with 3.0 SC motor
Works with or w/o 3 pin HZK (Does not work with 6 pin) Dimensions Wiring Porsche BLUETOOTH 911 2.4, 2.7 modified to fit 3.0 SC,3.3, 930 up to 89.  No HKZ, has SC Gear Porsche BLUETOOTH 911 2.4, 2.7 modified to fit 3.0 SC,3.3, 930 up to 89.  No HKZ, has SC Gear

    Porsche BLUETOOTH 911 2.4, 2.7 modified to fit 3.0 SC,3.3, 930 up to 89. No HKZ, has SC Gear

    123ignition

    MSRP:
    Now: $850.00
    (You save )
    (2 reviews) Write a Review
    SKU:
    TUNE+ 6-R-V POR 911 SC Gear 3Pin
    Width:
    4.00 (in)
    Height:
    9.00 (in)
    Depth:
    4.00 (in)

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    TUNE+ 6-R-V-POR911-BIG modified to work with 3.0 motor without the 6 pin box or using MSD.


    This Unit has the SC Gear so you can run without the 6 pin box on the 3.0 911 SC. If you want to run the 6 pin HKZ there is a dedicated unit for that. (Click Here)

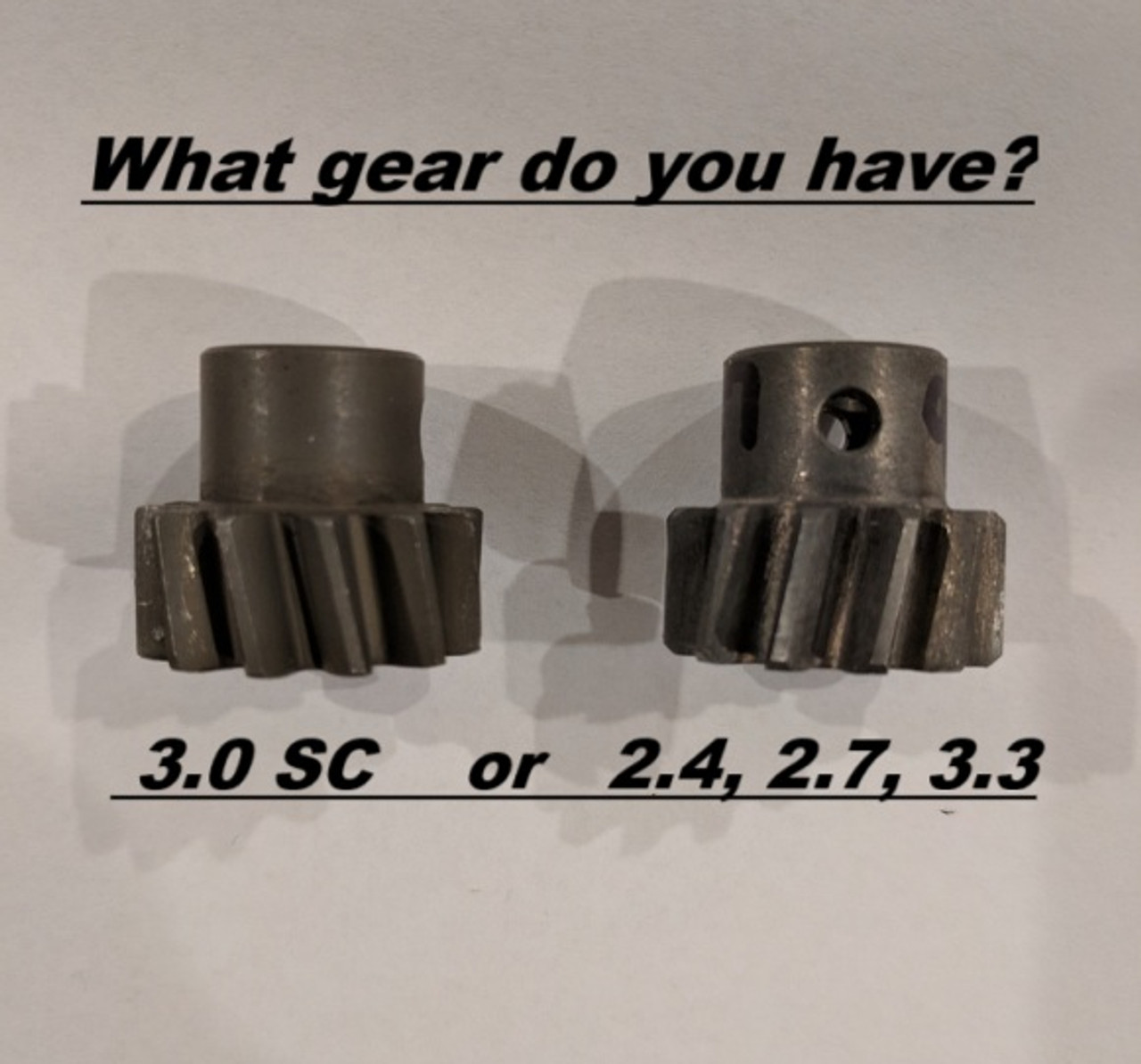

    A word about the gears 123ignition uses. The helix angle — one of the most critical gear parameters — is identical between the OEM and 123ignition pinion gears.

    Please Note! - Those with early 1978 911 3.0 SC engines (produced in 1977) need to know about the official Porsche technical bulletin from 1978.
    That bulletin specifies that when installing a later-style distributor, the earlier bronze drive gear must be replaced with the updated version. Failing to do so may lead to compatibility issues, regardless of the distributor brand. 123ignition literally has hundreds of the 3.0 SC distributors in service over the past 7 yrs. Not to mention all the regular 911 Bigs like the 2.4 and 2.7 that are successfully in service as well as BMW, and Ford Kent gears without issue. There have been a couple of issues reported that target the SC 3.0. Which the Service Manual specifically states, Early 1978 Porsche 911 3.0 SC engines (built in 1977) were equipped with a different type of bronze drive gear.
    When replacing the distributor in these engines, Porsche officially recommends updating the gear to the later version. If the technician has followed the protocol then the block is stamped appropriately. All of which is outlined in the Porsche technical bulletin from 1978. It applies to all aftermarket and OEM distributors — not just 123ignitions.



    Improve the performance of your classic car with this highly reliable electronic ignition distributor with Bluetooth.

    The wireless programmable 123TUNE+-6-R-V-POR911-3.0-SC is designed for Porsche 911 3,0L 6 cylinder engines.

    IMPORTANT:
    Only compatible with Porsche 911 3.0 SC engines!
    If you are using the original Bosch HKZ 6-pin box (CDI). There is a dedicated distributor for that.





    Improve the performance of your classic car with this highly reliable electronic ignition distributor with Bluetooth.

    The Bluetooth programmable 123TUNE+-6-R-V-POR911-BIG is designed for Porsche 911 2,4L – 2,7L and 3,3L 6 cylinder engines.

    Suitable for engines without HKZ (CDI) unit or first generation HKZ unit (3 wires ).

    Warning: Don’t use the original HKZ (CDI) coil direct on the 123ignition.


    Installation Manual




    The Bluetooth programmable 123\TUNE+-6-R-V-POR911-BIG is designed for Porsche 911 2,4L – 2,7L and 3,3L 6 cylinder engines.

    Suitable for engines without HKZ (CDI) unit or first generation HKZ unit (3 wires ).

    Warning: Don’t use the original HKZ (CDI) coil direct on the 123ignition.

    123ignition is proud to announce the first fully programmable Bluetooth ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.

    Main features: REV-counter, Antitheft system by a PIN code, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.

    Tune+-6-R-V-POR911-BIG= Tune+ stands for connection with bluetooth
    Tune+-6-R-V-POR911-BIG= 6 stands for the numbers of cylinders
    Tune+-6-R-V-POR911-BIG= R stands for Straight distributor kap
    Tune+-6-R-V-POR911-BIG= V stands for vacuum advance
    Tune+-6-R-V-POR911-BIG = POR911-BIG stands for the 123ignition type

    Product Videos

    Custom Field

    Product Reviews

    Write a Review

    Write a Review

    ×
    2.4, 2.7 Modified to work with 3.0 SC motor
Works with or w/o 3 pin HZK (Does not work with 6 pin)
    123ignition
    Porsche BLUETOOTH 911 2.4, 2.7 modified to fit 3.0 SC,3.3, 930 up to 89. No HKZ, has SC Gear

    2 Reviews Hide Reviews Show Reviews

    • 5
      wonderful products

      Posted by carl register on Jan 22nd 2023

      direct replacement excellent quality

    • 5
      Porsche 911 large diam shaft dist.

      Posted by william r pyle on Aug 16th 2022

      The quality of these dist. is top notch. The ease of installation awesomely simple. I just can't say enough good things about them. I run a Porsche Repair/Restoration Shop and we've installed many and have very happy customers.

    ×
    ×
