  • Bluetooth programmable POR 911-3.0-SC IMPORTANT: Only compatible with Porsche 911 3.0 SC engines using the 6 pin Hkz unit!
  • Wiring

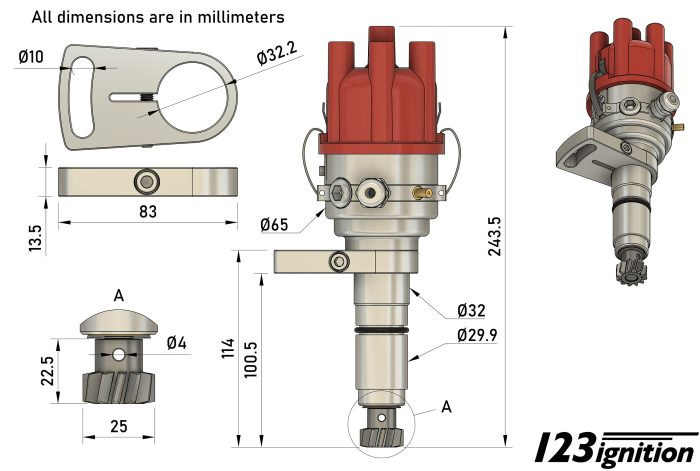

  • Dimensions

    • Porsche 911 Big 3.0 SC BLUETOOTH (HKZ 6-pin use only) Refurbished

    123ignition

    Was: $850.00
    Now: $725.00
    (No reviews yet) Write a Review
    SKU:
    TUNE+ 6-R-V-POR911-3L-SC Ref
    Width:
    4.00 (in)
    Height:
    9.00 (in)
    Depth:
    4.00 (in)
    • Epoxy Coil 1.5 ohm for 8 and 6 cyl also for 6v
    • Chrome Epoxy Coil 1.5 ohm for 8 and 6 cyl, also 4cyl race and 6v systems
    • Red 6 cyl cap and rotor
    • Black 6 cyl cap and rotor
    • Shaft replacement for 4 and 6 cyl BMW 123ignitions
    • Adapter Kit (Gear not included)
    Adding to cart… category.add_cart_announcement

    Product Description

    TUNE+-6-R-V-POR911-3.0-SC

    A word re 123ignition gears. The helix angle — one of the most critical gear parameters — is identical between the OEM and 123ignition pinion gears as recommended by the Porsche factory from 1978 and up.

    Please Note! - Those with early 1978 911 3.0 SC engines (produced in 1977) need to know about the official Porsche technical bulletin from 1978.
    That bulletin specifies that when installing a later-style distributor, the earlier bronze drive gear must be replaced with the updated version. Failing to do so may lead to compatibility issues, regardless of the distributor brand. 123ignition literally has hundreds of the 3.0 SC distributors in service over the past 7 yrs. Not to mention all the regular 911 Bigs like the 2.4 and 2.7 that are successfully in service as well as BMW, and Ford Kent gears without issue. There have been a couple of issues reported that target the SC 3.0. Which the Service Manual specifically states, Early 1978 Porsche 911 3.0 SC engines (built in 1977) were equipped with a different type of bronze drive gear.
    When replacing the distributor in these engines, Porsche officially recommends updating the gear to the later version. If the technician has followed the protocol then the block is stamped appropriately. All of which is outlined in the Porsche technical bulletin from 1978. It applies to all aftermarket and OEM distributors — not just 123ignitions.

    Improve the performance of your classic car with this highly reliable electronic ignition distributor with Bluetooth.

    The wireless programmable 123TUNE+-6-R-V-POR911-3.0-SC is designed for Porsche 911 3,0L 6 cylinder engines.

    IMPORTANT:
    Only compatible with Porsche 911 3.0 SC engines using the 6 pin HKZ (CDI) box.


    INSTALLATION MANUAL

    The Bluetooth programmable 123\TUNE+-6-R-V-POR911-3.0-SC is designed for Porsche 911 3,0L 6 cylinder engines.

    IMPORTANT:
    Only compatible with Porsche 911 3.0 SC engines! If you want to reuse your original gear. Order the bushing to aid in fitting the original gear
    Only suitable for engines with original Bosch HKZ (CDI) unit of the second generation. HKZ unit ( 6 wires ).

    Please be aware the Porsche 911 3.0 SC ignition has a different gear compared to other Porsche 911 engines.

    123ignition is proud to announce the first fully programmable wireless ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.

    Main features: REV-counter, Antitheft system by a PIN code, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.

    Tune+-6-R-V-POR911-3.0-SC = Tune+ stands for connection with bluetooth
    Tune+-6-R-V-POR911-3.0-SC = 6 stands for the numbers of cylinders
    Tune+-6-R-V-POR911-3.0-SC = R stands for Angeld distributor kap
    Tune+-6-R-V-POR911-3.0-SC = V stands for vacuum advance
    Tune+-6-R-V-POR911-3.0-SC = POR911-3.0-SC stands for the 123ignition type with a 6 pins HKZ unit
