Product Description
Porsche-911-BIG-6-R-V
Improve the performance of your classic car with this highly reliable electronic ignition distributor.
The 123\PORSCHE-911-BIG-6-R-V is designed for Porsche 911 2,4L – 2,7L and 3,3L 6 cylinder engines.
Compatible with engines using a 3-pin HKZ (CDI) module.
Also suitable for direct control using a suitable ignition coil.
This model is not compatible with 6-pin HKZ (CDI) modules.
Warning: Don’t use the original HKZ (CDI) coil direct on the 123ignition.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.

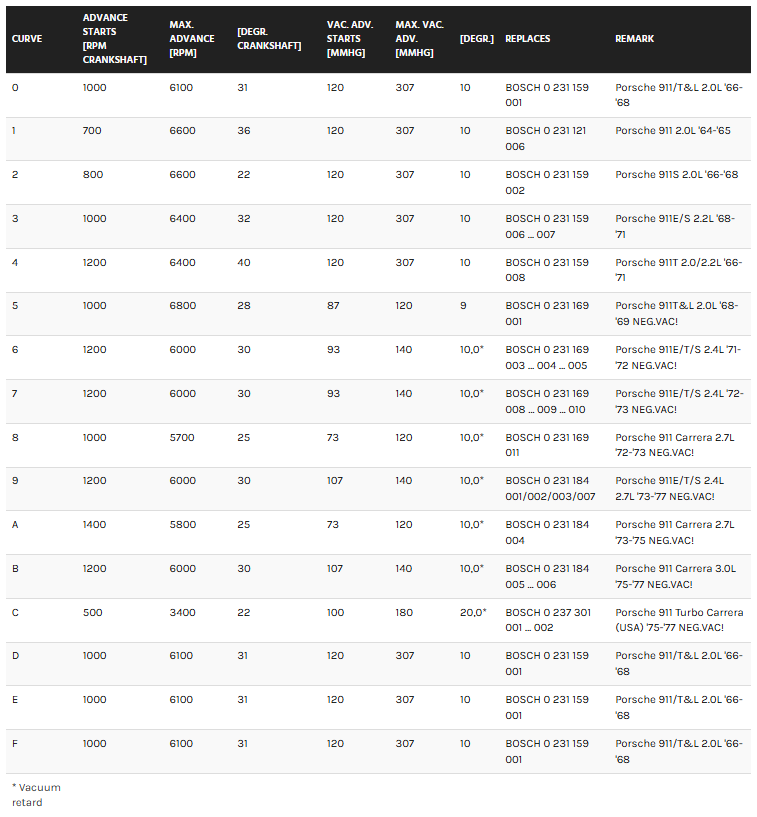

Please take a look in the curve table for available advance curves.
Porsche911BIG – 6 – R – V = Porsche911BIG stands for the 123ignition type
Porsche911BIG – 6 – R – V = 6 stands for the number of cylinders
Porsche911BIG – 6 – R – V = R stands for straight distributor cap
Porsche911BIG – 6 – R – V = V stands for vacuum advance
| Brand |
Porsche |
|---|---|
| Cylinders |
6 |
| Operating voltage |
4-15V |
| Wires |
Black: coil '-' ,Red: ignition key (battery 6V / 12V) |
| Model |
Switch |
| Rotation direction |
CW & CCW |
| Vacuum |
Yes |
| RPM range |
500-10.000 RPM |
| IE (D-jetronic support) |
No |
| Environmental temperature |
-30 – 100 °C |
| Cap type |
Straight |
| Dwell |
Constant current: fully automatic adaptive dwell |
| Coil charging time-out |
After 1 second, coil current is turned off |
| Spark balancing |
<0.5 degrees |
| Maximum advance |
40 degrees crankshaft |
Product Videos
Custom Field
Product Reviews
2 Reviews Hide Reviews Show Reviews
-
Switched Distributor
Purchased for my ‘74 911 to replace original bosch distributor in need of a rebuild. Quality and build seem very good. Installed per instructions and car fired up 1st try. Checked timing at idle and 6k RPM and both were spot on right out of the gate. I did use the included rotor as it seems to have a more positive fit than the bosch. However I did end up using a Bosch cap, as the included cap quality seemed sub par and fitment was not as good as the Bosch cap. Otherwise very pleased.
-
switched dist unit 2.7 911
These dist. are so nice, literally a plug and play
