Product Description

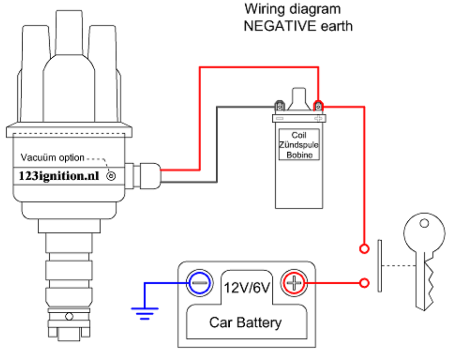

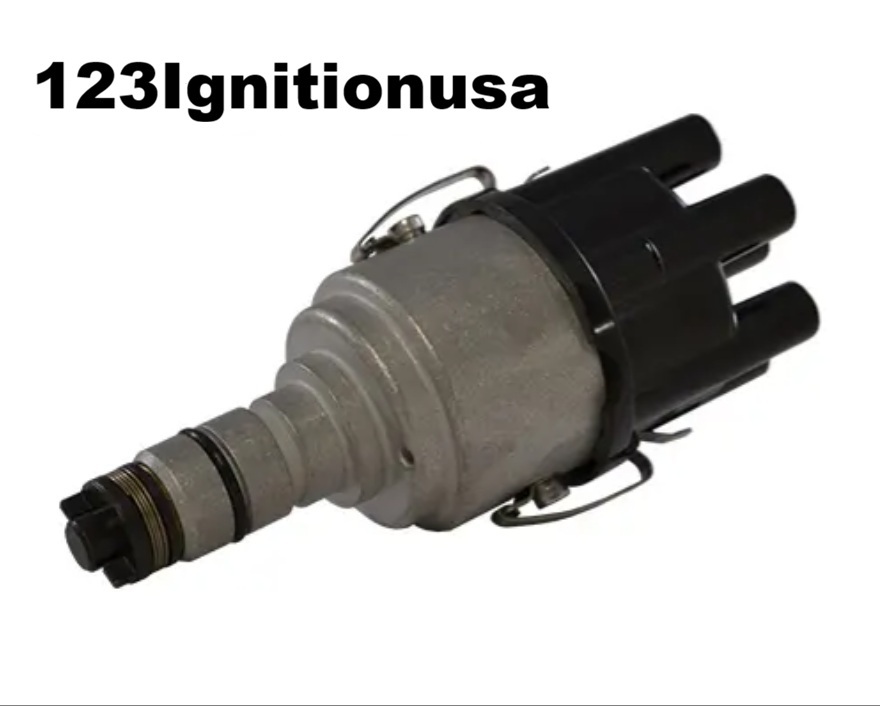

Rover 25D DESCRIPTION The 123\GB-6-R-V replaces most 6 cyl. Lucas-distributors for engines in Great-Britain (hence ‘GB’) cars. Note that there are dedicated 123-ignitions for Mini, Jaguar, MG, Triumph and others. Please check if the distributor need a connection for a mechanical rev.counter, as a 123\GB-6-R-V does not offer this. The unit offers a maximum total of 16 advance-curves to be selected by the end-user.Please take a look in the table below for available advance curves. Specifications Cylinders: 6 Directions: CW/CCW Voltage: 4,0 - 15,0 volt Range: 500 - 8000 rpm Temperature: -30 to 100 Celsius Coil: stock or High Energy coil, primary coil NOT below 1,0 ohm Dwell: constant current, fully autom. Time-out: after 1 second current is switched off Spark-bal: <0,5 degr. crankshaft Vacuum: Starts at 100 mmHg, ends at 10 degr. @ 300 mmHg Max. Advance: 45 degr. crankshaft Wiring: red = +6V or +12V, black = '-' coil Installation manual curve advance starts[rpm crankshaft] max. advance[rpm] [degr. crankshaft] vac. adv. starts[mmHg] max. vac. adv.[mmHg] [degr.] replaces remark 0 1000 4200 17 100 300 10 LUCAS 2000/5,0 1 1000 3600 17 100 300 10 LUCAS 2000/6,5 2 1000 3000 17 100 300 10 LUCAS 2000/8,4 3 1000 2500 17 100 300 10 LUCAS 2000/11,0 4 1000 4500 20 100 300 10 LUCAS 2000/6,0 5 1000 4500 20 100 300 10 LUCAS 2000/8,0 6 1000 4500 20 100 300 10 LUCAS 2000/10,0 7 1000 4500 20 100 300 10 LUCAS 2000/12,0 8 1000 4500 23 100 300 12 LUCAS 2000/6,5 9 1000 4500 23 100 300 12 LUCAS 2000/9,0 A 1000 4500 23 100 300 12 LUCAS 2000/11,0 B 1000 4500 23 100 300 12 LUCAS 2000/13,0 C 1000 4500 26 100 300 14 LUCAS 2000/7,5 D 1000 4500 26 100 300 14 LUCAS 2000/10,0 E 1000 4500 26 100 300 14 LUCAS 2000/12,0 F 1000 4500 26 100 300 14 LUCAS 2000/14,0
