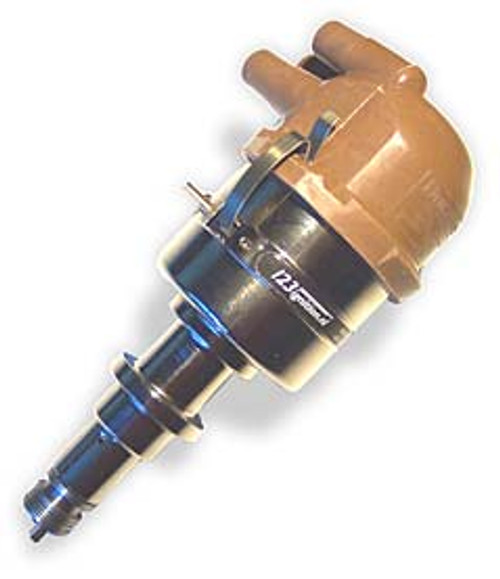

The 123\RENAULT-4-A-V is a distributor, specifically targeted for the “Cleon”-engines as used in Renault 4, Renault 5, 4F4, 4F6, Renault Estafette and DAF55. It contains all the curves for carbureted-engines as originally specified by Renault.
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
| curve | advance starts [rpm crankshaft] |
max. advance [rpm] |
[degr. crankshaft] | vac. adv. starts [mmHg] |
max. vac. adv. [mmHg] |
[degr.] | replaces | remark |
| 0 | 1100 | 4800 | 34 | 100 | 300 | 20 | R-222 & C33 | RENAULT-4 FOURGON MOTEUR 688 |
| 1 | 1300 | 5600 | 24 | 100 | 600 | 14,5 | R-280 & C52 | RENAULT-4 GTL MOTEUR 688 |
| 2 | 1200 | 5000 | 34 | 100 | 450 | 21 | R-244 & D61 | RENAULT-4 GTL MOTEUR 688 |
| 3 | 1000 | 4500 | 34 | 100 | 600 | 14,5 | R-268 & C52 | RENAULT-4 SAVANNE MOTEUR 708 |
| 4 | 1000 | 4900 | 18 | 100 | 300 | 10 | R-275 & C34, R-287 & C34 | RENAULT-5 MOT.:800-10 |
| 5 | 1000 | 4500 | 34 | 100 | 300 | 10 | R-268 & C34 | RENAULT-5 MOT.:689-10 |
| 6 | 1000 | 4600 | 36 | 100 | 300 | 10 | R-248 & C34 | RENAULT-5 MOT.:810-25 |
| 7 | 1000 | 4600 | 36 | 100 | 300 | 20 | R-248 & C33 | RENAULT-5 MOT.:810-26 |
| 8 | 1100 | 5000 | 30 | 100 | 450 | 21 | R-294 & D61 | RENAULT-5 MOT.:810-29 |
| 9 | 1000 | 5000 | 24 | 100 | 300 | 20 | R-308 & C33 | RENAULT-5 MOT.:1400cc |
| A | 800 | 4300 | 28 | 100 | 300 | 10 | R-230 & C34 | RENAULT-5 ALPINE |
| B | 1000 | 4500 | 36 | 75 | 375 | 14 | BB BR110 | DAF-55 |
| C | 1000 | 3500 | 30 | 75 | 375 | 19 | B130 | DAF-55 |
| D | 1400 | 3500 | 36 | 100 | 300 | 20 | R-249 & C33 | RENAULT ESTAFETTE MOT.:810-01 |
| E | 1000 | 4000 | 22 | 100 | 300 | 11 | ZS & ZT | SAVANNE ESTAFETTE MOT.:671 |
| F | 1000 | 6100 | 31 | 120 | 307 | 10 | BOSCH 0 231 159 001 | Porsche 911/T&L 2.0L '66-'68 |
