Product Description

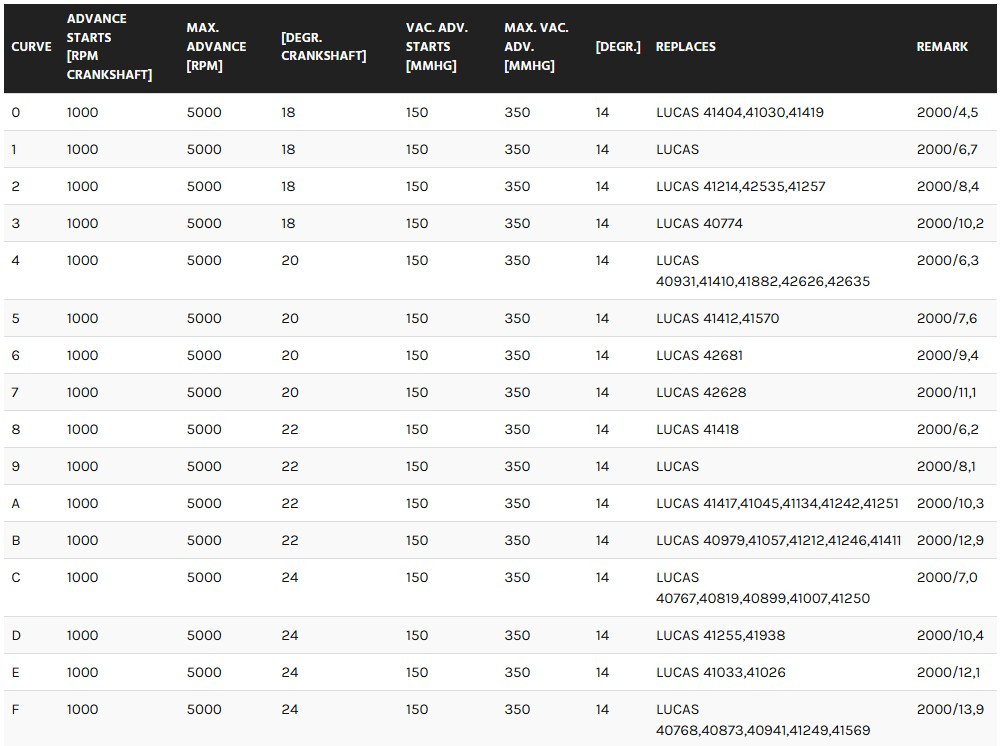

DESCRIPTION The 123\MINI-4-R is designed with the mini/midget-enthusiast in mind. This unit is suitable for the older ‘pre-A plus’ Mini/Midget engines, but also available for the newer A-plus engines. ( referred to as : 123\MINI-A+-R-V ) The 16 curves are nicely divided over the spectrum, so that the unit lends itself perfectly for tuning.The unit offers a maximum total of 16 advance-curves to be selected by the end-user.Please take a look in the table below for available advance curves. Specifications Cylinders: 4 Directions: CW/CCW Voltage: 4,0 - 15,0 volt Range: 500 - 8000 rpm Temperature: -30 to 100 Celsius Coil: stock or High Energy coil, primary coil NOT below 1,0 ohm Dwell: constant current, fully autom. Time-out: after 1 second current is switched off Spark-bal: <0,5 degr. crankshaft Vacuum: non Max. Advance: 45 degr. crankshaft Wiring: red = +6V or +12V, black = '-' coil Installation manual curve advance starts[rpm crankshaft] max. advance[rpm] [degr. crankshaft] vac. adv. starts[mmHg] max. vac. adv.[mmHg] [degr.] replaces remark 0 1000 5000 18 150 350 14 LUCAS 41404,41030,41419 2000/4,5 1 1000 5000 18 150 350 14 LUCAS 2000/6,7 2 1000 5000 18 150 350 14 LUCAS 41214,42535,41257 2000/8,4 3 1000 5000 18 150 350 14 LUCAS 40774 2000/10,2 4 1000 5000 20 150 350 14 LUCAS 40931,41410,41882,42626,42635 2000/6,3 5 1000 5000 20 150 350 14 LUCAS 41412,41570 2000/7,6 6 1000 5000 20 150 350 14 LUCAS 42681 2000/9,4 7 1000 5000 20 150 350 14 LUCAS 42628 2000/11,1 8 1000 5000 22 150 350 14 LUCAS 41418 2000/6,2 9 1000 5000 22 150 350 14 LUCAS 2000/8,1 A 1000 5000 22 150 350 14 LUCAS 41417,41045,41134,41242,41251 2000/10,3 B 1000 5000 22 150 350 14 LUCAS 40979,41057,41212,41246,41411 2000/12,9 C 1000 5000 24 150 350 14 LUCAS 40767,40819,40899,41007,41250 2000/7,0 D 1000 5000 24 150 350 14 LUCAS 41255,41938 2000/10,4 E 1000 5000 24 150 350 14 LUCAS 41033,41026 2000/12,1 F 1000 5000 24 150 350 14 LUCAS 40768,40873,40941,41249,41569 2000/13,9
