Product Description
123\TUNE+-4-A-V-G BLUETOOTH - Mini w/angled cap
where an angled cap is required
If you have a Smith's RVI Tachometer you may need to connect your 123 according to this diagram. RVI Tach Wiring (123ignitionusa.com)

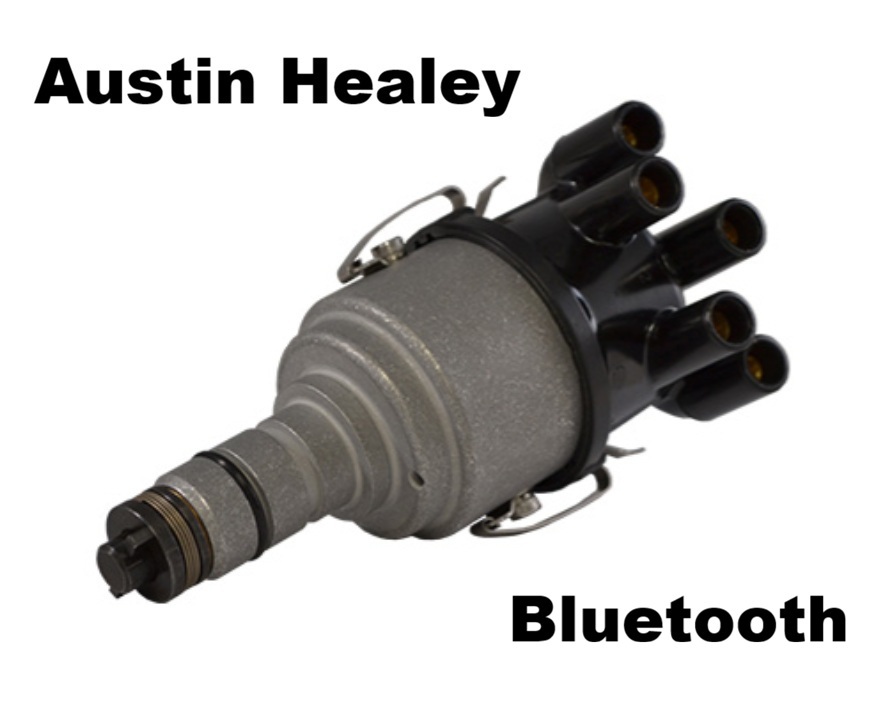

The 123\TUNE+-4-A-V-G replaces most 4 cyl. Lucas-distributors for engines in Great-British (hence 'GB') cars where an angled cap is required.
Please check if the distributor need a connection for a mechanical rev.counter, as a 123\TUNE+-4-R-V-G does not offer this.
123ignition is proud to announce the first fully programmable wireless Bluetooth 4.0 ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.
Main features: REV-counter, Antitheft system by a PIN code, Bluetooth 4.0, Real time tuning, Vacuum advance, Vacuum retard, Soft REV-limiter, etc.
Please check if the distributor need a connection for a mechanical rev.counter, as a 123\TUNE+-4-R-V-G does not offer this.
123ignition is proud to announce the first fully programmable wireless Bluetooth 4.0 ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.
Main features: REV-counter, Antitheft system by a PIN code, Bluetooth 4.0, Real time tuning, Vacuum advance, Vacuum retard, Soft REV-limiter, etc.
| SPECIFICATIONS | |
|---|---|
| cylinders: | 4 |
| direction: | CW/CCW |
| voltage: | 4,0-15,0 Volts |
| range: | 500 - 8000 rpm |
| temperature: | -30 to 100 Celsius |
| coil: | stock or High Energy coil, primary coil NOT below 1,0 ohm |
| dwell: | constant current, fully autom. |
| time-out: | after 1 second current is switched off |
| spark-bal.: | better than 0,5 degr. crankshaft |
| vacuum: | vacuum advance or vacuum retard, max. 20 degrees crankshaft |
| max.advance: | 45 degr. crankshaft |
| curves: | one programmable advance curves |
| Programmable: | By iOS or Android app via Bluetooth 4.0 |
| Rev limiter: | Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off |
| wiring: | red = +6V or +12V, black = '-' coil, blue = ground |
| App for IOS: | 123\Tune version 1.5.2 (link to App Store opens in new window) requires iPhone/IPad/iPod 4+ and upp |
| App for Android: | 123\Tune+ version 1.5.0 (link to Google Play Store opens in new window) requires Android 4.4 and up and a device with bluetooth 4 |
Product Videos
Videos Hide Videos Show Videos
Custom Field
Product Reviews
2 Reviews Hide Reviews Show Reviews
-
performance
Great product. Engine runs smoother and has noticeable better performance. Only negative was that the wires exit the distributor in a location that interferes with adjustments. Had to remove wire metal grommet to complete the install. Thanks Ray - By the way the housing can rotate and locate the wires in four different locations when you are setting up the green light. Hope this helps
-
4 CYLINDER ANGLED CAP BLUETOOTH PROGRAMMABLE MGA MGB MINI TRIUMPH AUSTIN ETC
Looks to be very well made. Have not used it yet, but anxious to use. Thanks Ed.
