Product Description
TUNE+-6-R-V-SM-IE

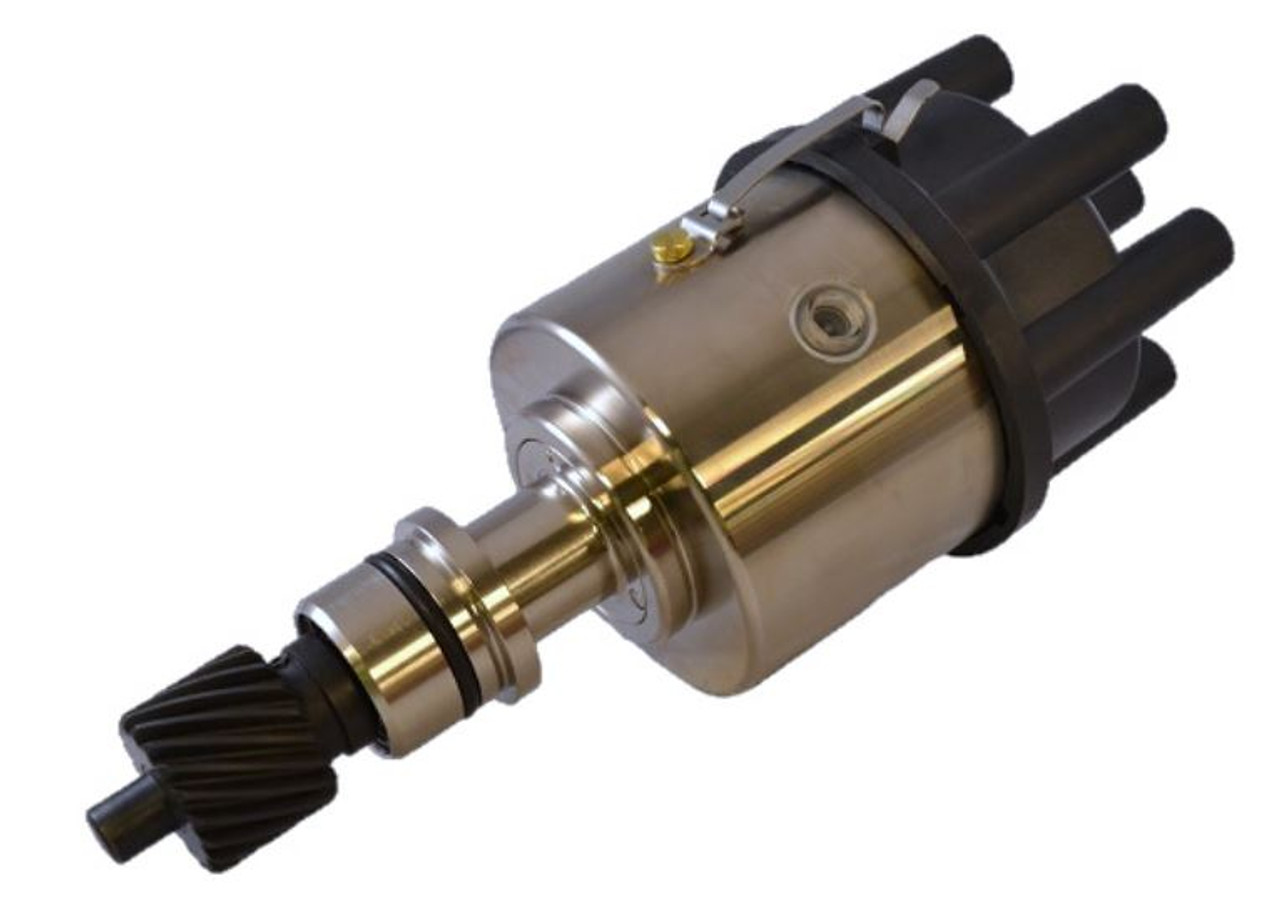

Improve the performance of your classic car with this highly reliable electronic ignition distributor with Bluetooth.
The Bluetooth programmable 123TUNE+-6-R-V-SM-IE is designed for the Citroën SM, Maserati-Merak & Merak SS.
The Citroën SM tachometer can be directly controlled by this product without using any additional modules or modifying the original gauge.
| Cylinders |
6 |
|---|---|
| Operating voltage |
4-15V |
| Positive earth supported |
Yes |
| Wires |
Black: coil '-' ,Blue: battery negative ,Red: ignition key (battery 6V / 12V) ,White & yellow: D-Jetronic signals |
| D-Jetronic injection output |
Yes |
| Model |
Tune+ |
| Vacuum |
Yes |
| Rotation direction |
CW & CCW |
| IE (D-jetronic support) |
Yes |
| RPM range |
500-10.000 RPM |
| Cap type |
Straight |
| Environmental temperature |
-30 – 100 °C |
| Brand |
Citroën |
| Dwell |
Constant current: fully automatic adaptive dwell |
| Coil charging time-out |
After 1 second, coil current is turned off |
| Spark balancing |
<0.5 degrees |
| Maximum advance |
40 degrees crankshaft |
The Bluetooth programmable 123\TUNE+-6-R-V-SM-IE is designed for the Citroën SM, Maserati-Merak & Merak SS.
123ignition is proud to announce the first fully, via Bluetooth programmable ignition for the Citroën SM! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard. The Citroën SM tachometer can be directly controlled by this product without using any additional modules or modifying the original gauge.
Main features: REV-counter, Antitheft system by a PIN code, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, D-Jetronic injection outputs, tachometer output signal etc.
Includes a high energy coil for optimal performance.
