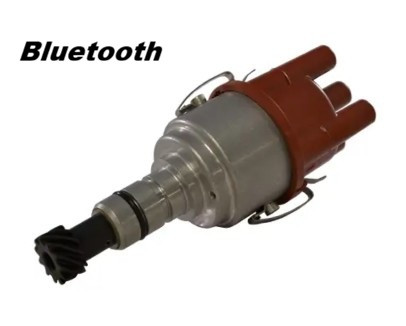

  • 123\TUNE+-4-R-V-BMW (for BMW) The 123\TUNE+-4-R-V-BMW is designed for M10 engines, in the BMW : -1600 -1602, 1602Ti -1800, 1800Ti -1802 -2000, 2000Ti, 2000Tii -2002, 2002Ti, 2002Tii, 2002Turbo - 316, 318, 518, 320, 520 (early types!!)
  • Dimensions
  • Negative TUNE Plus Wiring
  • POS TUNE Plus Wiring
  • Modified Shaft

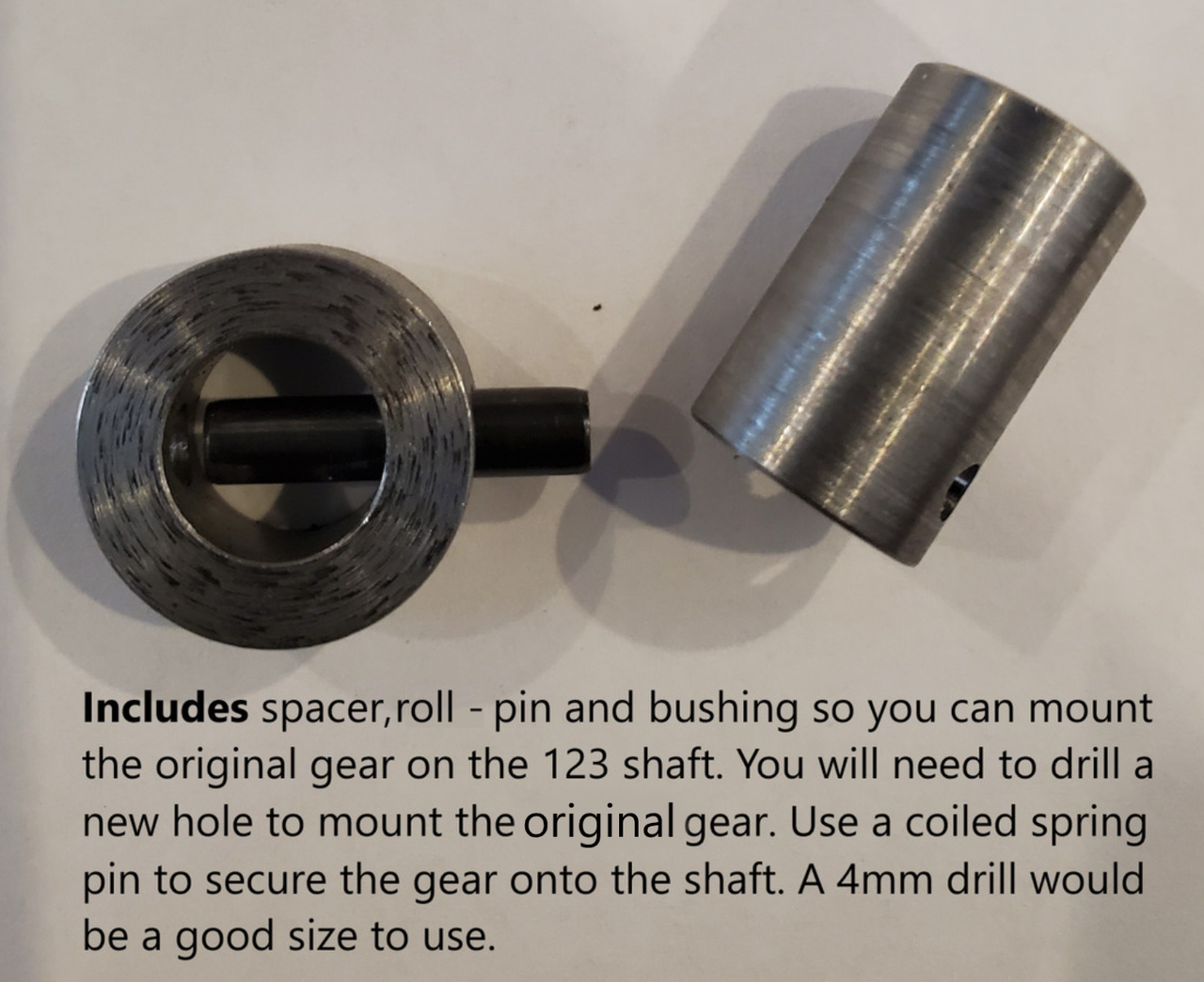

  • Adapter kit

    • BMW Bluetooth Programmable with 4 cylinder M10 engines. Suitable for use with Kugelfischer Injection

    123ignition

    $555.00
    (9 reviews) Write a Review
    SKU:
    TUNE+ 4-R-V-BMW
    Width:
    3.00 (in)
    Height:
    8.00 (in)
    Depth:
    3.00 (in)
    • Epoxy Coil 1.5 ohm for 6 and 8 cyl
    Adding to cart… category.add_cart_announcement

    Product Description

    TUNE+-4-R-V-BMW

    BMW
    BE CAREFUL your engine has a different drive gear on the camshaft than a "2002" M10 engine.
    In 1980 BMW started turning the distributors in the M10 engines the other way.
    You can not swap a pre 1980 distributor into a 1980 and later M10 (or the other way around).
    Even if you were to change the gear on the distributor so it turns the correct way the advance mechanism would work backwards on points style distributors.
    This is not the case with the 123ignition distributor. However, you cannot use the reverse oil groove. (But we are working on that. Due sometime in July)

    Improve the performance of your classic car with this highly reliable electronic ignition distributor with Bluetooth.

    The Bluetooth programmable 123\TUNE+-4-R-V-BMW is designed for M10 engines, in the BMW :

    -1600
    -1602, 1602Ti
    -1800, 1800Ti
    -1802
    -2000, 2000Ti, 2000Tii
    -2002, 2002Ti, 2002Tii, 2002Turbo
    – 316, 318, 518, 320, 520 (early types!!)

    Cylinders

    4
    Model

    Tune+
    Operating voltage

    4-15V
    Positive earth supported

    Yes
    Wires

    Black: coil '-', Blue: battery negative, Red: ignition key (battery 6V / 12V)
    Vacuum

    Yes
    Rotation direction

    CW & CCW
    IE (D-jetronic support)

    No
    RPM range

    500-8000 RPM
    Brand

    BMW
    Environmental temperature

    -30 – 100 °C
    Cap type

    Straight
    Dwell

    Constant current: fully automatic adaptive dwell
    Coil charging time-out

    After 1 second, coil current is turned off
    Spark balancing

    <0.5 degrees
    Maximum advance

    40 degrees crankshaft








    The 123\TUNE+-4-R-V-BMW is designed for M10 engines, in the BMW :

    -1600
    -1602, 1602Ti
    -1800, 1800Ti
    -1802
    -2000, 2000Ti, 2000Tii
    -2002, 2002Ti, 2002Tii, 2002Turbo
    – 316, 318, 518, 320, 520 (early types!!)

    123ignition is proud to announce the first fully programmable Bluetooth ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.

    Main features: REV-counter, Antitheft system by a PIN code, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.

    Tune+-4-R-V-BMW = Tune+ stands for connection with bluetooth
    Tune+-4-R-V-BMW = 4 stands for the numbers of cylinders
    Tune+-4-R-V-BMW = R stands for straight distributor cap
    Tune+-4-R-V-BMW = V stands for vacuum advance
    Tune+-4-R-V-BMW = BMW stands for the 123ignition type

    Product Videos

    Videos Hide Videos Show Videos

    Custom Field

    Product Reviews

    Write a Review

    9 Reviews Hide Reviews Show Reviews

    • 5
      123 distributor

      Posted by Barney Toler on Jul 21st 2024

      Always the best service for Ed…

    • 5
      123ignition for 4 cyl m10 bmw

      Posted by David M Donoghue on Jan 14th 2022

      The product appears to be well made. The shipping was fast and well packed. Instalation appears very simple. Directions are very simple.

    • 5
      123ignition TUNE+ 4-R-V-BMW (Bluetooth programmable version)

      Posted by Loyd on Oct 29th 2021

      The 123ignition TUNE+ 4-R-V-BMW (Bluetooth programmable version) performs as advertised on a 1973 BMW 2002tii. The engine is running better following installation of the 123ignition TUNE+ 4-R-V-BMW and companion Bosch Blue coil. The distributor is programmed to match the original factory specifications. The engine revs more readily, pulls better through the RPM range, reaches 5000 RPM with less effort, idles more consistently, plus engine temperature is lower. It’s amazing how correct ignition and timing impact engine performance to this degree. * Note: It is necessary to establish at least one point on the timing curve with a timing light. Thereafter, the timing curve that is programmed into the 123ignition distributor will be correctly positioned on the X-axis of the graph.  On a 1973 BMW 2002tii, that point is 2,700 rpm at 25 degrees, which is BMW’s only specification for dynamic timing on this particular car (all other points on a timing curve which are built into a mechanical advance distributor, or programmed into an electronic distributor) are indexed against this reference point). It is unfortunate that this important step is omitted in the published installation instructions for the 123ignition.

    • 5
      123 for BMW M10

      Posted by Jeff Ireland on May 6th 2019

      Works great. Totally programmable. We run it on the race car. 8k rpm no problem.

    • 5
      barry@medwayimports.com

      Posted by Barry Roth on Jun 4th 2018

      Works as advertised, 1972 BMW 2002 runs like new again

    • 5
      outstanding

      Posted by Paulo Martinelli on Apr 10th 2018

      first class product / will give the engine more smothness

    • 5
      one the best upgrades we have made to our BMW 2002

      Posted by Unknown on Dec 11th 2017

      very happy with 123...

    • 5
      Like a new car again.

      Posted by Joe on Sep 12th 2017

      Easy setup, worth every penny.

    • 5
      Wow! Best investment for your car.

      Posted by Unknown on Aug 15th 2016

      This is by far the best upgrade I've ever made to my '71 BMW 2002. Worth every penny! The car runs better than ever and picks up speed faster than it did before. My experience may be different than others' since my previous distributor had a faulty vacuum dash pot so it wasn't running well prior to installing the 123 Ignition. Regardless, the Bluetooth options and ease of use (and not having to deal with points) make this distributor a huge improvement!
